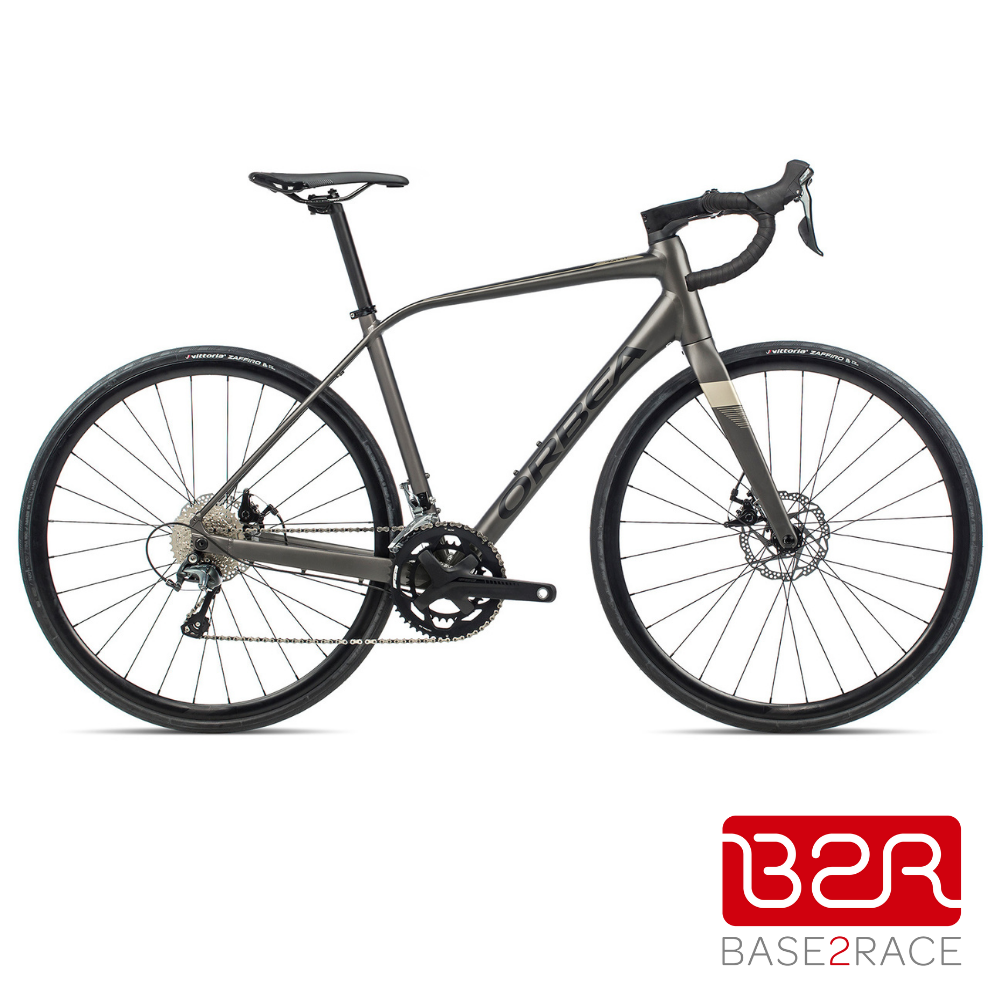

Orbea Avant H40 Disc
Orbea Avant H40 Disc
Orbea Avant H40 Disc
Orbea Avant H40 Disc

Orbea Avant H40 Disc

Regular price €1,699.00
Unit price  per
Tax included.

RIDING WITHIN REACH

Grab your Avant and fill your bottles before rolling out on your afternoon ride. No other machine can better help you enjoy the exhilaration of road cycling. The speed, freedom and the views offered by quiet roads are all included free with every Avant - and you love it.

Not everyone wants to be a racer, or own a racing bike. But there are people who are just as passionate about the sport. People who ride every chance they get: Before work, after work, to work, on the weekend- any time they can. They ride for the thrill, for pleasure, to alleviate stress. But that doesn’t mean they don’t care about what bike they ride. These passionate riders take bike choice seriously. They want a bike that will let them put in the miles, and stay injury free. A bike that's efficient and doesn’t waste movement. A bike that looks good. It seems like a tall order, but the Avant delivers.

Every single tube of the Avant has been designed for a purpose, to be light, to be strong, to aid comfort. Each tube is made of triple hydroformed triple butted aluminum. It is a light material which is easy to work with, as well as being budget friendly. To reduce weight Orbea thins the walls where the support isn’t needed and keeps thickness in the key areas like joints.This makes for a lightweight, durable bike that is built for endurance. Also the geometry has been altered to make for a more comfortable endurance ride.

Orbea endeavors to have ultimate power transfer to the pedals with no wasted movement. To achieve this, they lengthened the head tube,giving a higher hand position. This lets the rider ride upright. A much more comfortable position, one that can be maintained for hours.

The Avant is a bike that is made to make riding a pleasure, one that can last for years.


  • Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
  • Fork Orbea carbon fork 2021, aluminum steerer, 1-1/8" head tube
  • Crankset FSA Omega Megaexo 34x50t
  • Headset Acros Alloy 1-1/2" Internal Cable Routing
  • Handlebar OC1 Road, reach 80mm, drop 125mm
  • Stem OC1 31.8mm interface -6º
  • Shifters Shimano Tiagra ST-4700
  • Brakes Tektro MD-C550 Mechanical Disc
  • Cassette Sun Race CSMS1 11-34t 10-Speed
  • Rear derailleur Shimano Tiagra 4700 GS
  • Front derailleur Shimano Tiagra 4700
  • Chain KMC X10
  • Wheels Orbea wheel: Cosra with 12mm E-Thru hubset Shimano RS470 28H
  • Tyres Vittoria Zafiro V Rigid bead 700x28c
  • Seatpost Alloy 27.2 Offset 20
  • Saddle Selle Royal Seta RS
  • Handlebar Plugs Orbea Eva
  • Front Wheel Axle Orbea Thru Axle 12x100mm M12x2 P1 Solid
  • Rear Wheel Axle Orbea Thru Axle 12x142mm M12x2 P1 Solid
